XFX nForce 680I LT SLI-Ready Intel Socket 775 Motherboard






XFX nForce 680I LT
SLI-Ready Intel Socket 775 Motherboard
Are you ready for dual-GPU computing? Whether you're a gamer or just a graphics buff, the XFX nForce 680I LT is an excellent chassis. It is designed for Intel processors like the Core 2 Extreme, Core 2 Extreme Quad, Core 2 Duo, Core 2 Quad, Celeron D, Pentium 4, and Pentium D series. It has 2 PCI Express x16 slots, perfect for running two SLI-ready GPUs. There are also 2 PCI Express x1 slots and 2 PCI slots. This Vista Ready motherboard features the NVIDIA nForce 680i LT SLI MCP Chipset. It supports RAID 0, 1, 0+1, 5 setups and SATA components. Other features include onboard LAN, 8 possible USB ports, and NVIDIA technologies like FirstPacket, MediaShield Storage, nTune Utility, and more.


Specifications

  Form Factor:  ATX
  Processor Interface:  Socket 775
  Processors Supported:  Intel Pentium 4 LGA775
  Intel Pentium D
  Intel Core 2 Duo, Intel Core 2 Extreme, Intel Core 2 Quad
  Additional Technologies:  64-bit
  HyperThreading Technology
  Vista Ready, Intel Quad Core Ready, SLI Ready
  Front Side Bus:  1333MHz
  Northbridge:  NVIDIA nForce 680i LT SLI MCP
  Number of Slots:  4
  Number of Pins:  240-Pin
  Maximum Memory Supported:  4GB - 32bit
  8GB - 64bit
  Memory Supported:  800MHz DDR2
  Channels:  8 Channels
  Audio Chipset:  AC '97 CODEC
  Supported Devices:  2
  Hard Drive Types:  ATA/100
  USB Version:  2.0
  USB Data Transfer Rates:  480Mbps
  LAN Type:  10/100/1000Mbps Gigabit
  Port Type:  RJ-45
  PCI Slots:  2
  PCI Express X1 Slots:  2
  PCI Express X16 Slots:  2

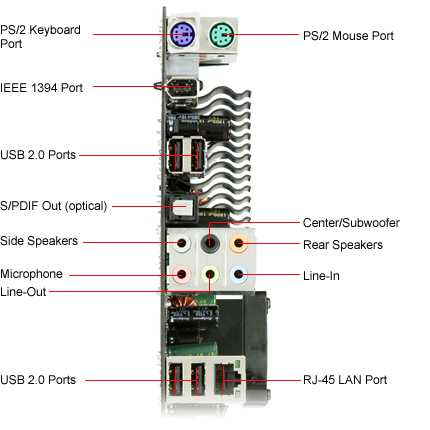

  PS/2 Keyboard Connectors:  1
  PS/2 Mouse Connectors:  1
  USB Ports:  8
  FireWire Ports:  1 - 1394a
  LAN Ports:  1
  Audio Out Jacks:  1
  Line In Jacks:  1
  Microphone Jacks:  1
  Center Audio Jacks:  1
  Subwoofer Audio Out Jacks:  1
  CD-In Headers:  1
  IDE Headers:  1
  FDD Headers:  1
  Serial ATA Headers:  6
  ATX Power Connectors:  1 24-Pin Connector
  PC Power Connectors:  1 - 8 Pin
  Fan Connectors:  1 x Power
  1 x CPU
  1 x Chassis
  S/PDIF Connectors:  1 - Optical
  Length:  13.50 in. (34.29 cm)
  Width:  13.00 in. (33.02 cm)

A Closer Look



Ïèøèòå è Çâîíèòå




Counter CO.KZ

Socket
This motherboard features a Socket 775 design.

Chipset
The nForce 680i LT SLI motherboard is based on the NVIDIA nForce 680i LT SLI MCP Northbridge chipset. It supports INtel Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium D, and Pentium 4 LGA775 Processors, with Hyper-Threading Technology and 1333MHz Front Side Bus support.

Memory Expansion
The nForce 680i LT SLI provides 4 DIMM sockets using Dual Channel 240-pin DDR2 with a total capacity of up to 8GB-64bit (4GB-32bit). You can install DDR2 800MHz Memory.

PCI Express Support
The nForce 680i LT SLI fully supports PCI Express, the latest I/O interconnect technology that speeds up the PCI bus. PCI Express features point-to-point serial interconnections between devices and allows higher clockspeeds by carrying data in packets. This high-speed interface is software compatible with existing PCI specifications.

IDE
The nForce 680i LT SLI includes built in IDE facilities that support Ultra ATA 100.
Audio
The nForce 680i LT SLI comes with a High Definition audio codec which supports high quality 8-channel audio.
